IP67 Rating Waterproof 2.45 Ghz RFID Reader Access Control High Protection Grade

Name: IP67 Rating Waterproof 245 Ghz RFID Reader Access Control High Protection Grade
Brand: SUNSHINE
Price: 1 USD

Brand Name : SUNSHINE

Model Number : F3433

Certification : CE,ROSH

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T, Western Union

Packaging Details : Carton

Operating frequency : 2.4GHz~2.5GHz ISM

RF Power : -30.0dBm~1.0dBm

Reading distance : 0~50m

Communication rate : 250Kbps

User memory : 4K byte

Electric hint : alarm when low battery

Contact Now

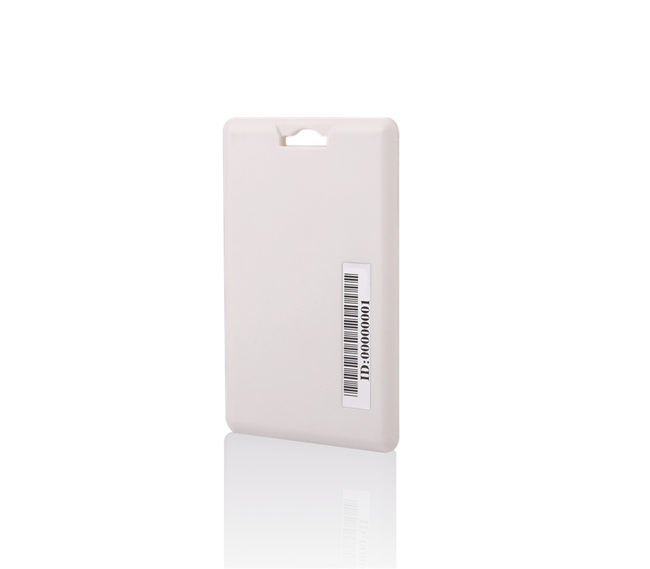

Active RFID card 2.45 GHz mobile active tag rfid long distance for Access Control

Key Features of active rfid card

Long reading distance

Ultra low RF power consumption, long life time

Excellent anti-collision mechanism makes multiple tags real time monitoring adaptable

High protection grade

Large user memory, which can be used for many flexible applications

Mainly Performance Parameter

Name	2.45GHz RSSI UHF RFID active tag
Working Frequency	2.4GHz~2.5GHz ISM
RF Power	-30.0dBm~1.0dBm
Reading distance	0~50m (with standard matched 2dBi Omni-directional antenna) 0~200m(depends on antenna)
Operating current	<22uA, 3V (500ms transmitting interval)
Modulation	GFSK
Communication rate	250Kbps
User memory	4K byte
Working temperature	-20°C~+60°C 90%RH
Storage temperature	-40°C~+80°C
Life time	Read and write: 3 years(500ms transmitting interval) Read only: 5 years (500ms transmitting interval)
RSSI function	YES
Electric hint	alarm when low battery
Material	ABS(ROHS), flame retardant
Colour	White, blue, yellow, green
Environmental sealing	IP65
Drop test	1.2m
Weight	30g
Dimension	87mm56mm5mm

Main Specifications

2.45Ghz operating frequency, private protocol
More than 100meters reading distance
ID card
IP67 rating

IP67 Rating Waterproof 2.45 Ghz RFID Reader Access Control High Protection Grade

How to order

Please chat with us click "send message" to leave massage about the quantity,special modelyou want or your requirement. Then we will reply to you ASAP.

After we confirm all detailed information, we Will Make PI (Performa Invoice) for you to confirm the order if you need.
